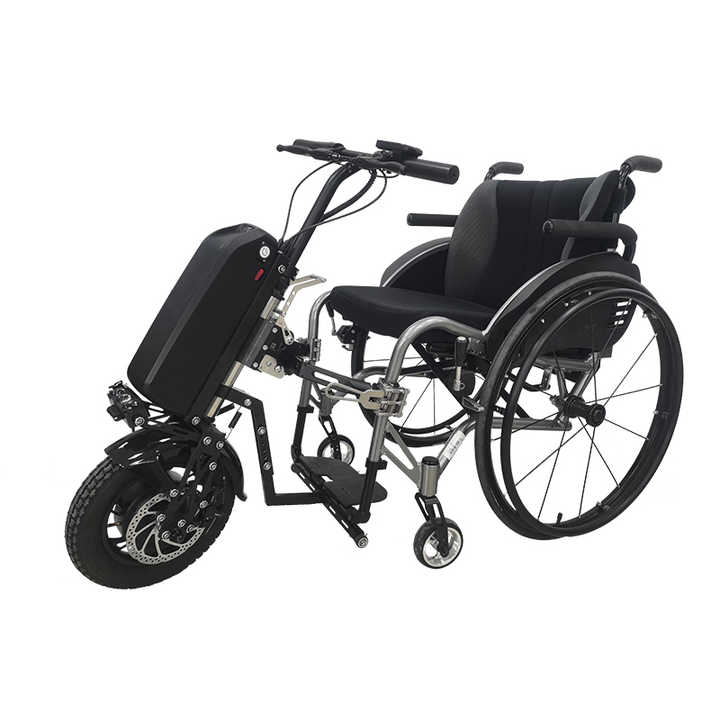

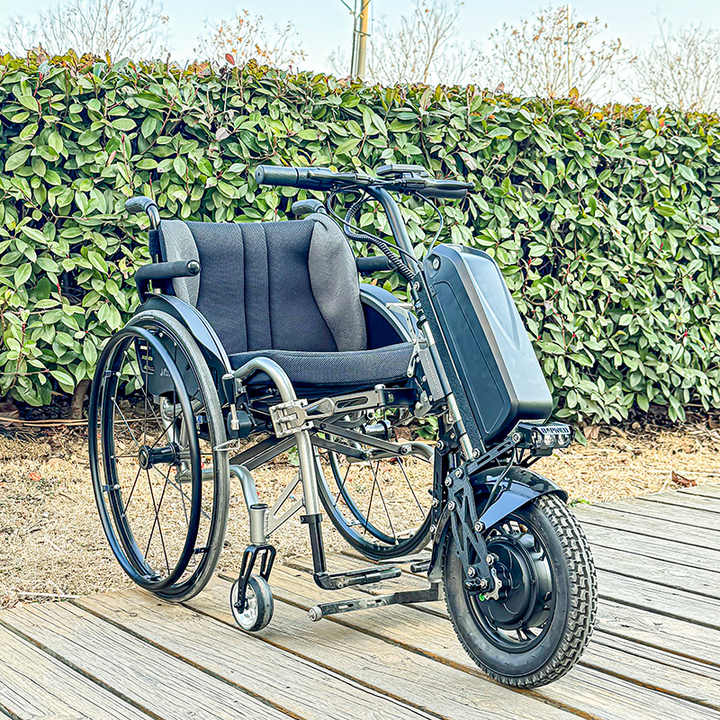

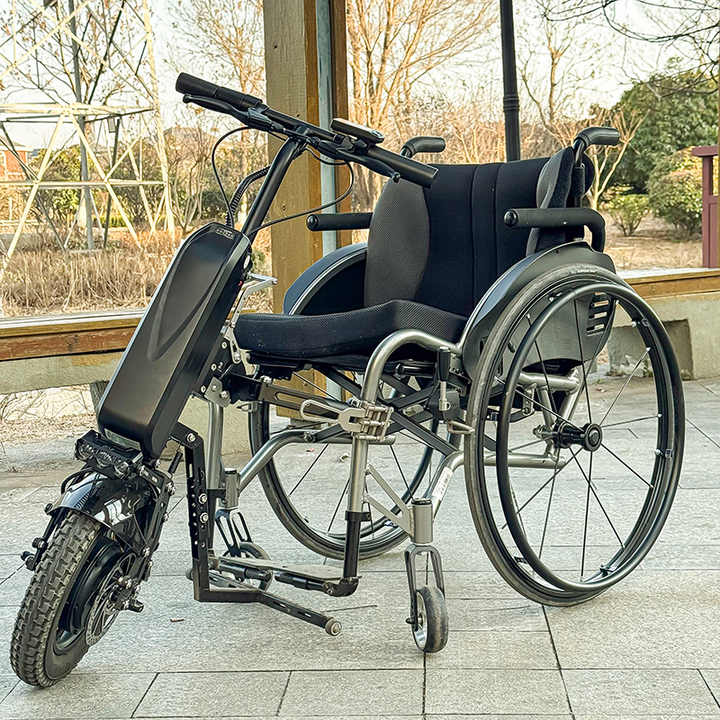

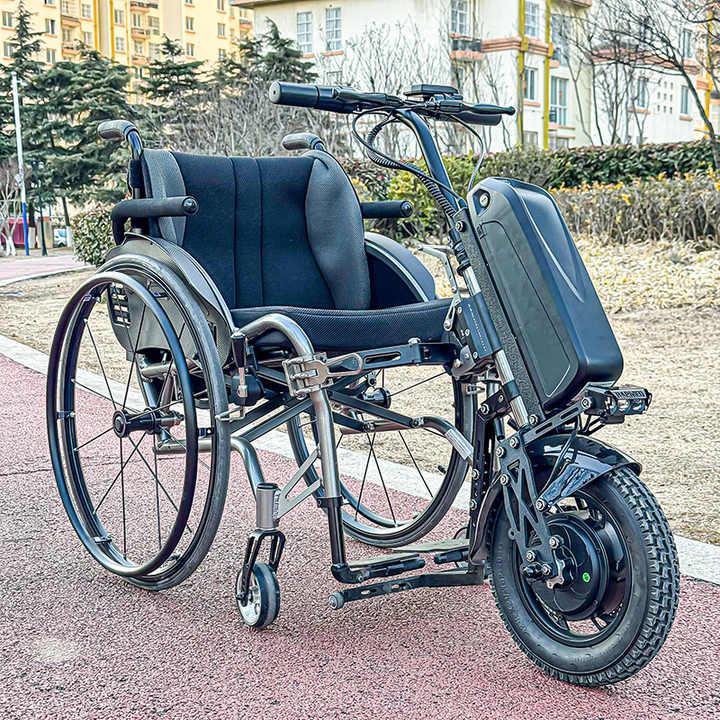

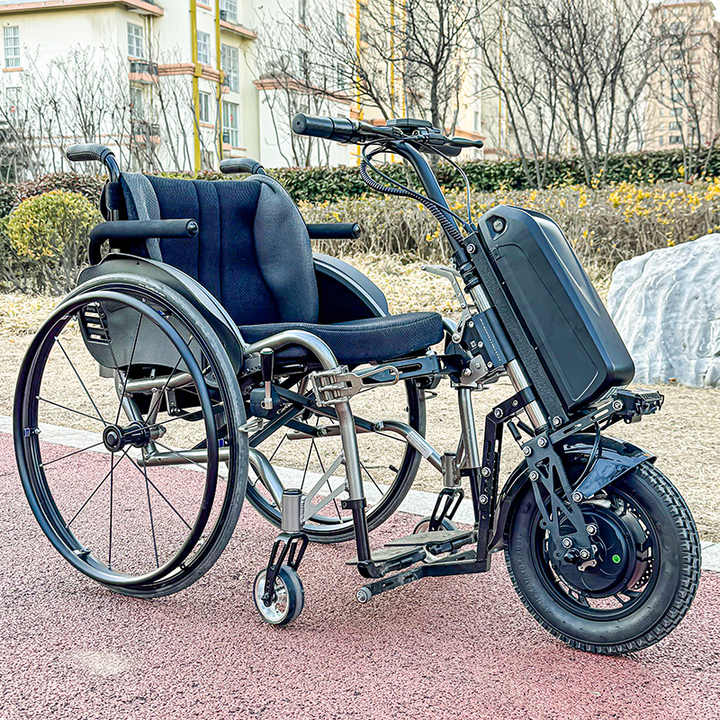

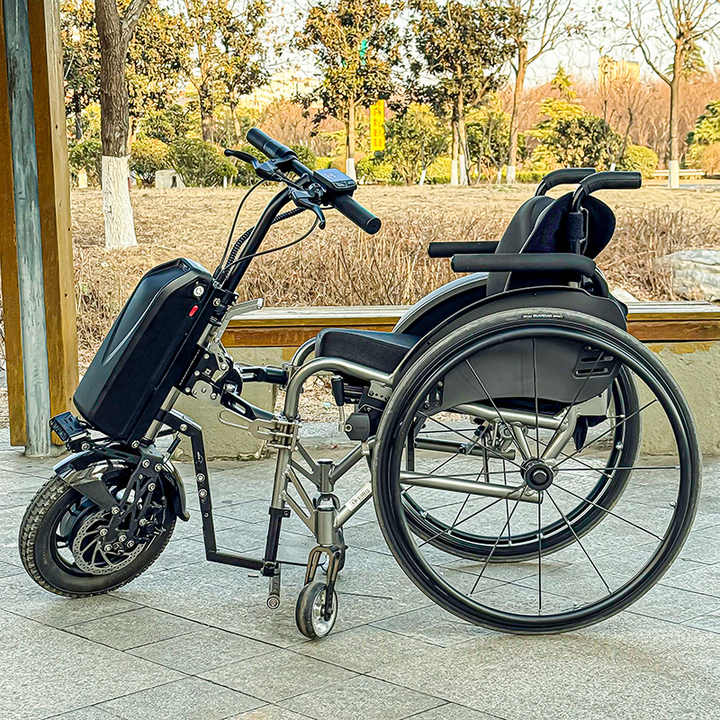

Product Details
Commercial Traction Technology
✅ Mechanical Disc Brakes
180mm stainless rotors + dual-piston calipers (0.3s stopping at 25km/h)
✅ Modular Drive System
48V 350W brushless hub motor (45Nm torque)
✅ Rigid Chassis Design
102×53×80cm package size (stackable transport)
Technical Specifications
| Parameter | Specification | Commercial Advantage |
|---|---|---|
| Motor | 48V 350W Brushless Hub | EN 12184-compliant torque |
| Brake System | Mechanical Disc | 0.3s slope stop safety |
| Max Speed | 25 km/h | Facility transit efficiency |
| Wheel Size | 12 Inch | Universal wheelchair fit |
| Package Size | 102×53×80 cm | Standard pallet compatible |
| Net Weight | 21 kg | ↓$38/unit shipping costs |
| Slope Capability | 15° | Hospital ramp compliant |
| Attachment | Tool-free clamp (30-50mm) | 95% chair compatibility |
B2B Applications
Medical Equipment OEMs
Pre-assembled hub motor wheelchair kit for production lines
Custom voltage configurations (24V/36V/48V)
Healthcare Facilities
Converts manual chairs in 15 seconds
Disc brake pads = 2x lifespan vs. drum systems
Mobility Distributors
Stackable design: 18 units/pallet
IP54 weather resistance for outdoor fleets
Precision Engineering
1. Brake Performance
180mm ventilated stainless steel rotors
Ceramic brake pads (15,000km service interval)
Tested per ISO 7176-10 (15° slope braking)
2. Motor Specifications
Power: 350W continuous Peak Torque: 45Nm @ 250rpm Efficiency: 89% (EN 60335-2-109)
3. Structural Integrity
Laser-welded steel frame
200kg dynamic load rating (ISO 7176-8)
Commercial Terms
| Item | Specification |
|---|---|
| MOQ | 50 units |
| Lead Time | 15 days (standard) |
| Certifications | CE, ISO 9001, EN 12184 |
| Warranty | 24 months motor/brakes |
| Customization | Voltage/Branding/IP rating |
